Busch Major Repair Kit with Carbon Fiber wrapped Vanes, 0630 B Part# BMK023CF
Kit contents may vary from product image, for exact kit contents see bill of materials below
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 47300900 | Busch Needle Bearing - No Sleeve (Race) Part# 47300900 | 2 | 4 |
| 47201100 | Busch Bearing, Sleeve (Race) Part# 47201100 | 2 | 4 |
| 47201000 | Busch Bearing Sleeve Part# 47201000 | 2 | 4 |
| 43708000 | Busch Taper Pin, Threaded Part# 43708000 | 4 | 6 |
| 42000700 | Busch Hex Nut, M8 Part# 42000700 | 2 | 3 |
| 48656700 | O-ring, 140 x 5 mm - Viton, Part# 48656700 | 2 | 9 |
| 48656100 | Busch O-Ring,Viton,25 X 2 MM Part# 48656100 | 2 | 11 |
| 48654900 | O-Ring, FKM - Part# 48654900 | 2 | 16 |
| 48652100 | O-Ring,FKM | 4 | 43 |
| 48651200 | Busch O-Ring,Viton,35 X 4 MM Part# 48651200 | 8 | 39 |
| 48650500 | O-ring, FKM - Part# 48650500 | 1 | 44 |
| 48406200 | Busch Ring Gasket Part# 48406200 | 1 | 2 |
| 48404000 | ring Gasket, Busch, R5, 0160B, 0250B, 0160D, Part# 48404000 | 2 | 8 |
| 710000010 | Oil Drain Plug, 1/2" Nylon | 1 | 39 |
| 48403400 | Busch Ring Gasket Part# 48403400 | 2 | 26 |
| 48402900 | Busch Ring Gasket, Copper Part# 48402900 | 1 | 28 |
| 48011100 | Busch Cylinder/Exhaust Box Gasket Part# 48011100 | 1 | 3 |
| 48012800 | Busch Gasket Part# 48012800 | 1 | 6 |
| 72245500CF | Busch Vane - Carbon Fiber Wrapped Part# 72245500CF | 3 | 0 |
| 73001800 | Busch R5 Inlet Ball Valve, Viton - Part# 73001800 | 1 | 2 |
| 79509 | O-ring, 28 x 3 mm - Viton, Part# 79509 | 1 | 19 |
| 83623 | Busch Sight Glass Part# 83623 | 1 | 5 |
| 481532126 | Busch Float Valve Cover Gasket Part# 481532126 | 1 | 5 |
| 481529712 | Busch Float Valve Gasket Part# 481529712 | 1 | 4 |
| 480537332 | Busch Oil Cooler Gasket Part# 480537332 | 2 | 6 |
| 48013100 | Busch Exhaust Box Cover Gasket Part# 48013100 | 1 | 9 |
| 48206600-420MM | Busch O-Ring,Silicone,420MM LONG Part# 48206600-420MM | 1 | 3 |
| 48703200 | Busch Shaft Seal, Viton Part# 48703200 | 4 | 9 |
| 486903988 | Busch O-Ring,Viton,266.3 x 3.53mm Part# 486903988 | 2 | 6 |
| 48661100 | O-ring, 97 x 5 mm - Viton, Part# 48661100 | 1 | 5 |
| 48210600 | Busch Oil Fill Plug Gasket Part# 48210600 | 1 | 5 |
| 48023100 | Busch Oil Sight Glass Gasket Part# 48023100 | 1 | 31 |
| 48013400 | Busch Side Cover Plate Gasket Part# 48013400 | 1 | 4 |
| PL23970149 | O-ring, 8 x 2 mm - Viton, Part# PL23970149 | 2 | 17 |
| 500015PP | Sight Glass Assembly | 1 | 9 |
General product classifications
| Compatible Brands | Busch |
| Family | R5 |
| Compatible Pump Models | 0630B |
| Category | Repair Kits |
| Subcategory | Overhaul Kits |
| Country of origin | US |

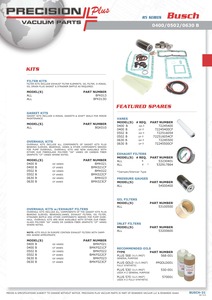

| Manual page | BUSCH-31 |
The Busch Major Repair Kit with Carbon Fiber Wrapped (CF) Vanes, Part# BMK023CF, is specifically designed for Busch vacuum pumps with the 0630 B model. This kit provides all the essential components required for a major repair, ensuring the pump's optimal performance and longevity. One of the key components included in this kit is the carbon fiber wrapped vanes. These vanes feature a fiberglass core with a carbon fiber wrap, which provides several benefits. The carbon fiber wrap prevents the penetration of oil into the vane core, making them suitable for applications where oil contamination needs to be minimized. The carbon fiber material also withstands high temperatures and corrosive environments, making it ideal for harsh chemical and metalizing applications.
