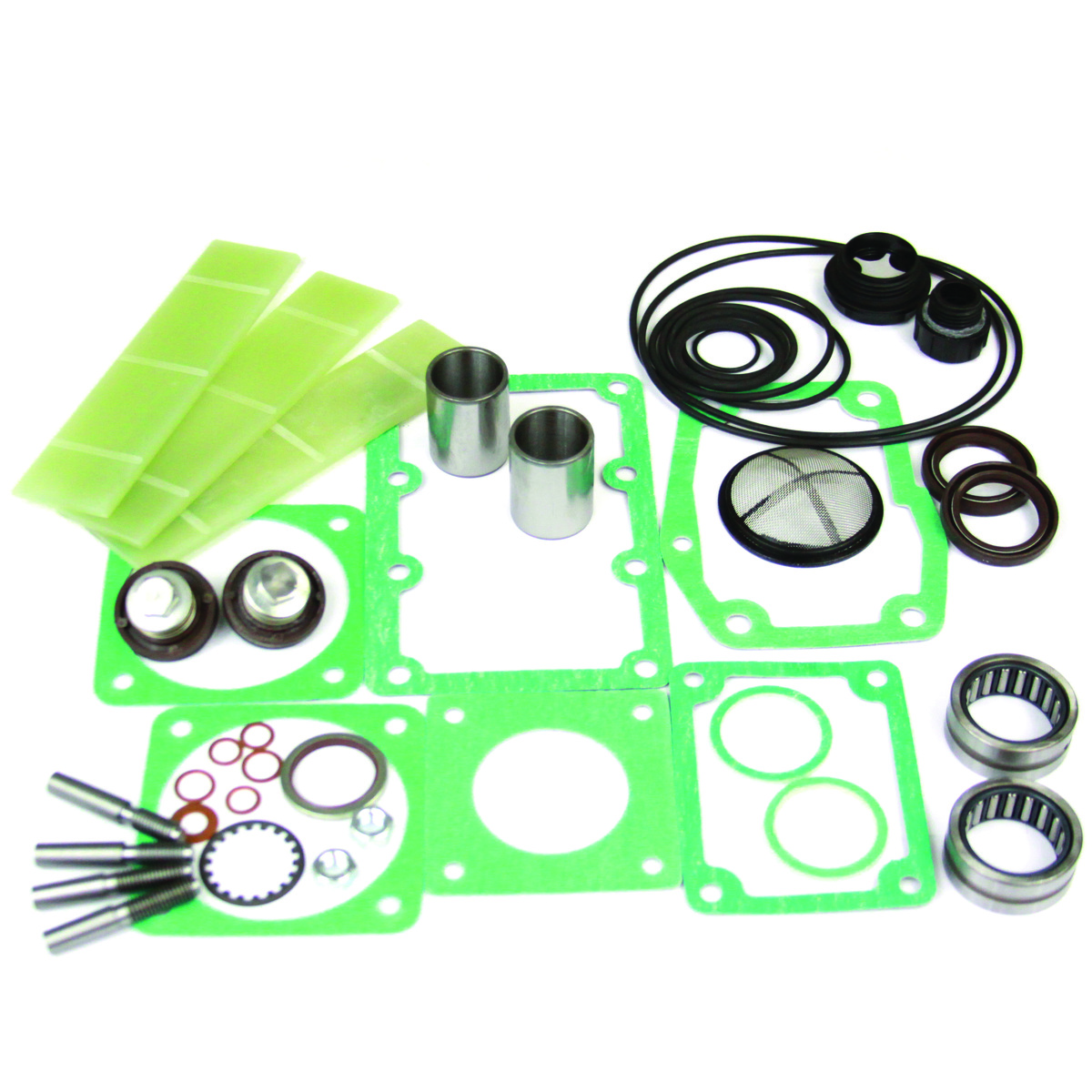

Busch Major Repair Kit with GX Vanes - 0100 B Part# BMK011
For complete kit content details see bill of materials below
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 48650500 | O-ring, FKM - Part# 48650500 | 1 | 30 |
| 48402900 | Busch Ring Gasket, Copper Part# 48402900 | 2 | 31 |
| 48403400 | Busch Ring Gasket Part# 48403400 | 2 | 28 |
| 47300400 | Busch Needle Bearing Part# 47300400 | 2 | 6 |
| 48406700 | Busch Ring Gasket Part# 48406700 | 1 | 4 |
| 47200600 | Busch Bearing Sleeve Part# 47200600 | 2 | 4 |
| 48011500 | Busch Exhaust Gasket Part# 48011500 | 1 | 4 |
| 48023100 | Busch Oil Sight Glass Gasket Part# 48023100 | 1 | 37 |
| 48202100 | Busch Fill Plug Gasket, Buna Part# 48202100 | 1 | 5 |
| 48401400 | Busch Ring Gasket Part# 48401400 | 8 | 18 |
| 48401700 | Busch Ring Gasket Part# 48401700 | 3 | 26 |
| 48651600 | O-Ring,Viton,45 X 2.5 MM Part# 48651600 | 1 | 2 |
| 42000700 | Busch Hex Nut, M8 Part# 42000700 | 2 | 4 |
| 43707300 | Busch Taper Pin, Threaded Part# 43707300 | 4 | 5 |
| 48651200 | Busch O-Ring,Viton,35 X 4 MM Part# 48651200 | 2 | 57 |
| 43238000 | Retaining Ring, Busch R5 - Part# 43238000 | 1 | 2 |
| 48652100 | O-Ring,FKM | 2 | 30 |
| 48652600 | O-Ring, FKM | 2 | 37 |
| 48653900 | Busch O-Ring,Viton,128 X 3 MM Part# 48653900 | 2 | 6 |
| 48655900 | O-ring, 44 x 3 mm - Viton, Part# 48655900 | 1 | 25 |
| 48700800 | Busch Shaft Seal, Viton - 30 x 42 x 6 Part# 48700800 | 2 | 5 |
| 83623 | Busch Sight Glass Part# 83623 | 1 | 4 |
| 72236000 | Busch Vane, 1st Stage - GX Part# 72236000 | 3 | 20 |
| 48010500 | Busch Exhaust Gasket Part# 48010500 | 1 | 3 |
| 42000500 | Busch Hex Nut, M6 Part# 42000500 | 2 | 6 |
| 53400900 | BUSCH R5 Inlet Screen part# 53400900 | 1 | 2 |
| 484130591 | Busch Dowty Seal, Viton - 27 x 35 x 2.3 mm Part# 484130591 | 1 | 17 |
| 48011200 | Busch Cylinder Gasket Part# 48011200 | 2 | 27 |
| 43707000 | Busch Taper Pin, Threaded Part# 43707000 | 4 | 12 |
| 710000010 | Oil Drain Plug, 1/2" Nylon | 1 | 20 |
| 53401800 | BUSCH R5 Inlet Screen, Conical part# 53401800 | 1 | 0 |
| 500015PP | Sight Glass Assembly | 1 | 12 |
General product classifications
| Part Number Cross-Reference |
23BU-0100/0100B-V
993.228.02 |
| Manufacturer | Precision Plus |
| Compatible Brands | Busch |
| Family | R5 |
| Compatible Pump Models | 0100B |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | GB |
| Manual page | BUSCH-28 |
The Busch Major Repair Kit with GX Vanes, Part# BMK011, is specifically designed for Busch vacuum pumps with the 0100B model. This kit contains all the essential components required to perform a major repair on the pump, ensuring its optimal performance and longevity. By replacing the vanes as part of the major repair, you can restore the pump's functionality and maintain its efficiency. The GX vanes are designed to withstand the demands of the pumping process and provide reliable sealing, ensuring proper operation and preventing air or gas leakage.The Busch Major Repair Kit with GX Vanes, Part# BMK011, is a comprehensive kit designed for the 0100B model of Busch vacuum pumps. It includes GX vanes and other essential components for a major repair, ensuring the pump's optimal performance, reliability, and longevity.
