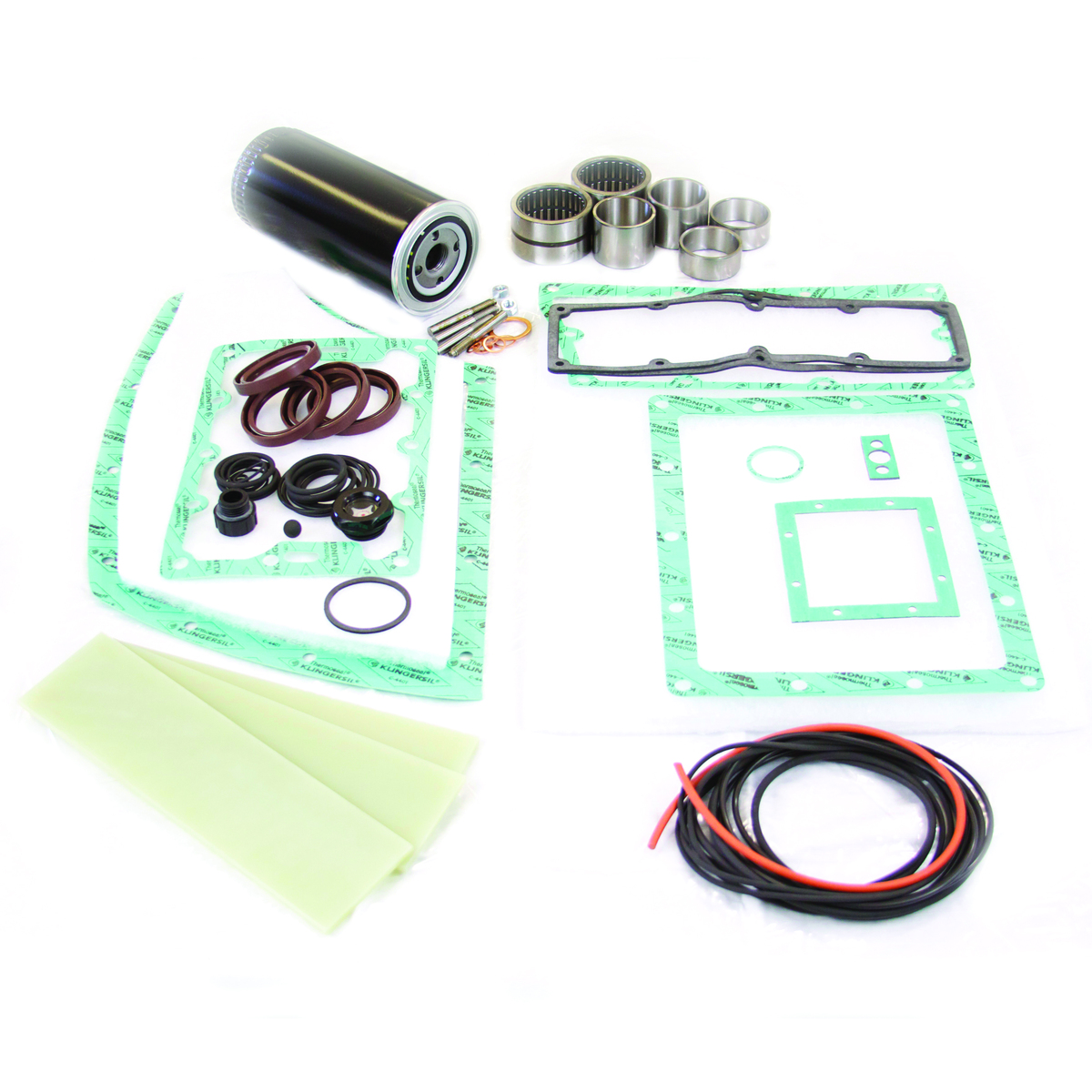

Busch Major Repair Kit with GX Vanes - 0400B Part# BMK021
Busch Major Repair Kit with GX Vanes - 0400B Part# BMK021

Busch Major Repair Kit with GX Vanes - 0400B Part# BMK021

BMK021
EUR 1,350.00
Used on Busch R5 0400B

For exact kit content details see bill of materials below

Part number alternatives 23BU-0400B-V

1 In Stock

Click For Availability
You may also like...
VPL M100 Mineral Vacuum Pump Oil, 20 Liter
M100-020
VPL M100 Mineral Vacuum Pump Oil, 20 Liter
EUR 201.00
VPL S100 Synthetic Vacuum Pump Oil, 20 Liter
S100-020
VPL S100 Synthetic Vacuum Pump Oil, 20 Liter
EUR 292.00
Bill Of Material
Part Number Description Quantity Qty in stock
48013400 Busch Side Cover Plate Gasket Part# 48013400 1 4
48661100 O-ring, 97 x 5 mm - Viton, Part# 48661100 1 5
47201000 Busch Bearing Sleeve Part# 47201000 2 5
48023100 Busch Oil Sight Glass Gasket Part# 48023100 1 37
48656700 O-ring, 140 x 5 mm - Viton, Part# 48656700 2 10
43708000 Busch Taper Pin, Threaded Part# 43708000 4 10
42000700 Busch Hex Nut, M8 Part# 42000700 2 4
486903988 Busch O-Ring,Viton,266.3 x 3.53mm Part# 486903988 2 6
79509 O-ring, 28 x 3 mm - Viton, Part# 79509 1 34
73001800 Busch R5 Inlet Ball Valve, Viton - Part# 73001800 1 5
72245400 Busch Vane, 1st Stage - GX Part# 72245400 3 4
710000010 Oil Drain Plug, 1/2" Nylon 1 20
48703200 Busch Shaft Seal, Viton Part# 48703200 4 12
83623 Busch Sight Glass Part# 83623 1 4
48402900 Busch Ring Gasket, Copper Part# 48402900 1 31
481529712 Busch Float Valve Gasket Part# 481529712 1 4
48013100 Busch Exhaust Box Cover Gasket Part# 48013100 1 7
481532126 Busch Float Valve Cover Gasket Part# 481532126 1 6
48012800 Busch Gasket Part# 48012800 1 5
47201100 Busch Bearing, Sleeve (Race) Part# 47201100 2 5
47300900 Busch Needle Bearing - No Sleeve (Race) Part# 47300900 2 5
48011100 Busch Cylinder/Exhaust Box Gasket Part# 48011100 1 4
48406200 Busch Ring Gasket Part# 48406200 1 3
48404000 ring Gasket, Busch, R5, 0160B, 0250B, 0160D, Part# 48404000 2 7
48210600 Busch Oil Fill Plug Gasket Part# 48210600 1 3
480537332 Busch Oil Cooler Gasket Part# 480537332 2 7
48650500 O-ring, FKM - Part# 48650500 1 30
48652100 O-Ring,FKM 4 30
48651200 Busch O-Ring,Viton,35 X 4 MM Part# 48651200 8 57
48654900 O-Ring, FKM - Part# 48654900 2 20
48656100 Busch O-Ring,Viton,25 X 2 MM Part# 48656100 2 13
48206600-420MM Busch O-Ring,Silicone,420MM LONG Part# 48206600-420MM 1 3
48403400 Busch Ring Gasket Part# 48403400 2 28
PL23970149 O-ring, 8 x 2 mm - Viton, Part# PL23970149 2 16
500015PP Sight Glass Assembly 1 12
Specifications

General product classifications

Part Number Cross-Reference 23BU-0400B-V
993.047.01
Manufacturer Precision Plus
Compatible Brands Busch
Family R5
Compatible Pump Models 0400B
Category Repair Kits
Subcategory Major Kit
Country of origin GB
Manual page BUSCH-31
Product Details

The Busch Major Repair Kit with GX Vanes (Part number BMK021) is a crucial product for maintaining and repairing the Busch 0400B vacuum pump. This comprehensive kit includes all the necessary components and parts required to perform major repairs on the 0400B model. It features GX vanes, which are specifically designed for optimal performance and efficiency in the 0400B vacuum pump. By replacing worn-out or damaged parts with GX vanes, the kit ensures reliable operation and extends the service life of the vacuum pump. With the Busch Major Repair Kit with GX Vanes (Part number BMK021), you can confidently repair and maintain your Busch 0400B vacuum pump, ensuring its continued smooth operation.
