Booster Repair Kit - Edward EH250/500 & QMB250/500 Part# 30151800

Booster Repair Kit - Edward EH250/500 & QMB250/500 Part# 30151800

30151800
EUR 757.00
Used on Edwards EH Booster,QMB Blower QMB250, EH250, QMB500, EH500

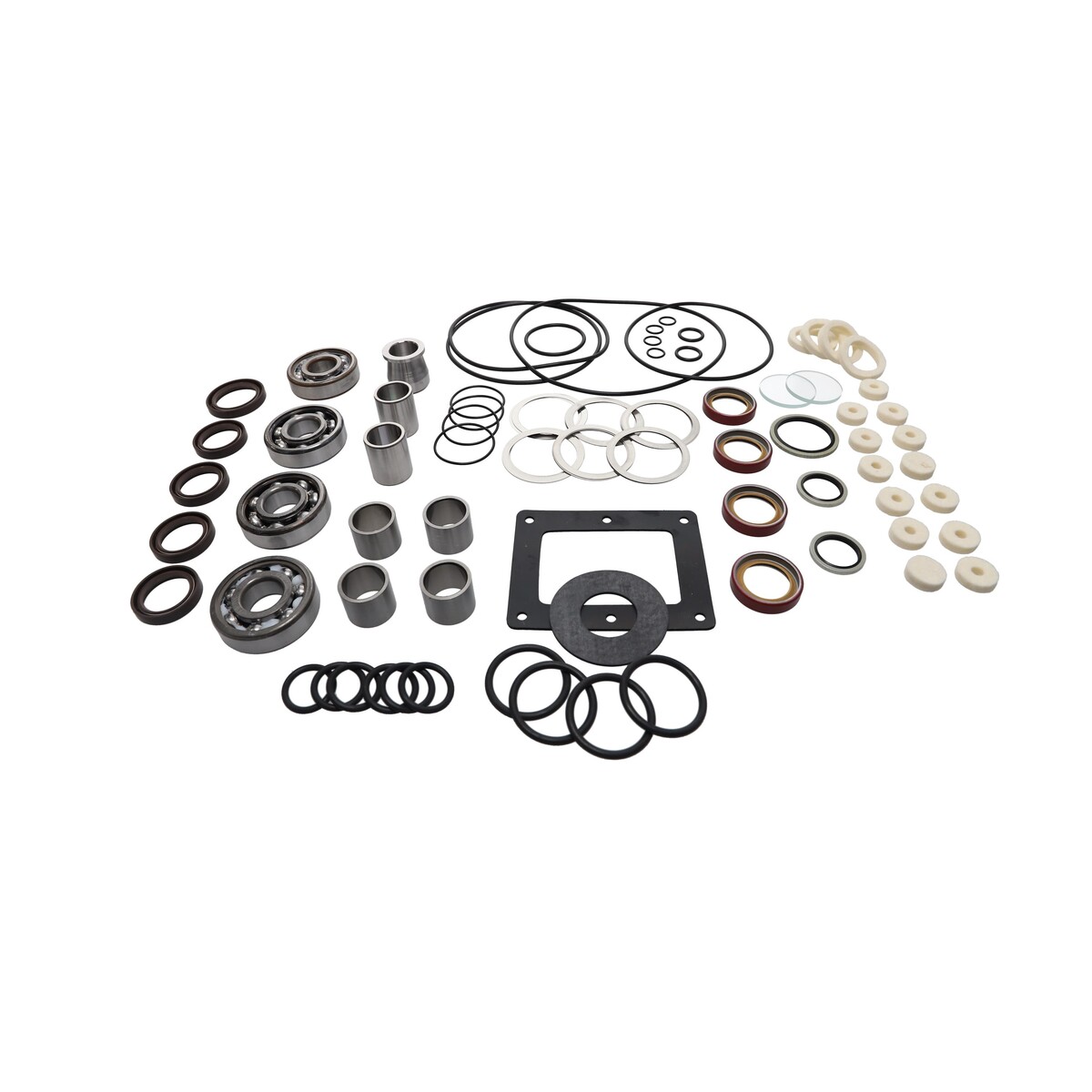

Booster Repair Kit includes; shaft seals, gaskets, sleeves, shims, filers, and bearings (as required) for a complete overhaul of both the drive section and pumping

13 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
02126028 O-Ring, 31.34 x 3.53 mm - Viton 4 185
02126121 O-ring, 15.54 x 2.62 mm - Viton, Part# 2126121 2 175
20403010K Ball Bearing, PFPE, Edwards, EH Booster, QMB Blower, Part# 20403010K 2 60
22302015 Felt Filter, Edwards, EH Booster, QMB Blower, Part# 22302015 11 706
20403025 Ball Bearing, S-Row, Edwards, EH Booster, QMB Blower, Part# 20403025 2 48
23714034 O-ring, 19 X 3 mm - Viton, Part# 23714034 6 245
23714036 O-ring, 150 x 3 mm - Viton, Part# 29361336 1 60
23714037 O-ring, 233 X 3 mm - Viton, Part# 23714037 1 57
27159547 Gasket, Edwards, EH Booster, QMB Blower, Part# 27159547 1 53
27165008 Shim, 0. 20 mm, Edwards, EH Booster, QMB Blower, Part# 27165008 3 1684
27165010 Shim, 0. 35 mm, Edwards, EH Booster, QMB Blower, Part# 27165010 3 194
27165011 Shim, 0. 40 mm, Edwards, EH Booster, QMB Blower, Part# 27165011 3 194
27165018 Shim, 0. 30 mm, Edwards, EH Booster, QMB Blower, Part# 27165018 3 194
A27802735 Hardened Sleeve 1 321
27159438 Gasket, Edwards, Part# 27159438 1 66
02122091 O-ring, 109.5 x 3 mm - Viton, Part# 2122091 1 54
02122009 O-ring, 11.1 x 1.6 mm - Buna, Part# 02122009 4 240
02120077 O-ring, 42.5 X 3 mm - Buna, Part# 2120077 1 251
02120023 O-ring, 35.1 x 1.6 mm - Buna, Part# 02120023 4 968
02109052 Shaft Seal, Teflon 4 122
A22302016 Filter 2 233
A20405049 Inner Ring 4 478
27165009 Shim, 0. 25 mm, Edwards, EH Booster, QMB Blower, Part# 27165009 3 76
27165032 Shim, 0. 125 mm, Edwards, EH Booster, QMB Blower, Part# 27165032 3 194
23754016 Dowty Seal, Buna, Edwards, Part# 23754016 2 68
02104008 Dowty Seal, Buna, Edwards, EH Booster, QMB Blower, E1/E2M, Part# 02104008 1 84
A29201004 Edwards Sight Glass, Part # A29201004 2 733
22302005 Edwards Dust Seal, Part# 22302005 4 207
02109142 Shaft Seal, 25x35x7mm, Edwards, EH Booster, QMB Blower, Part# 02109142 4 83
A27801725 Sleeve Spare PK2 - (Not for sale) 1 18
Specifications

General product classifications

Part Number Cross-Reference A30151820
A30151810
A30151800
23E-EH250-COMBO
Manufacturer Precision Plus
Compatible Brands Edwards
Family EH Booster
QMB Blower
Compatible Pump Models QMB250
EH250
QMB500
EH500
Category Repair Kit
Subcategory Major Repair / Overhaul Kit
Country of origin US
Product Details

The Major Repair Kit with part number 30151800 is designed specifically for the Edward EH250 Booster and QMB Blower. It includes various components such as shaft seals, gaskets, sleeves, shims, filters, and bearings (as needed) to perform a comprehensive overhaul of both the drive section and pumping components. This kit is compatible with Pump Models QMB250, EH250, QMB500, and EH500. It provides all the essential parts required to repair and restore the functionality of the booster, ensuring efficient operation.
