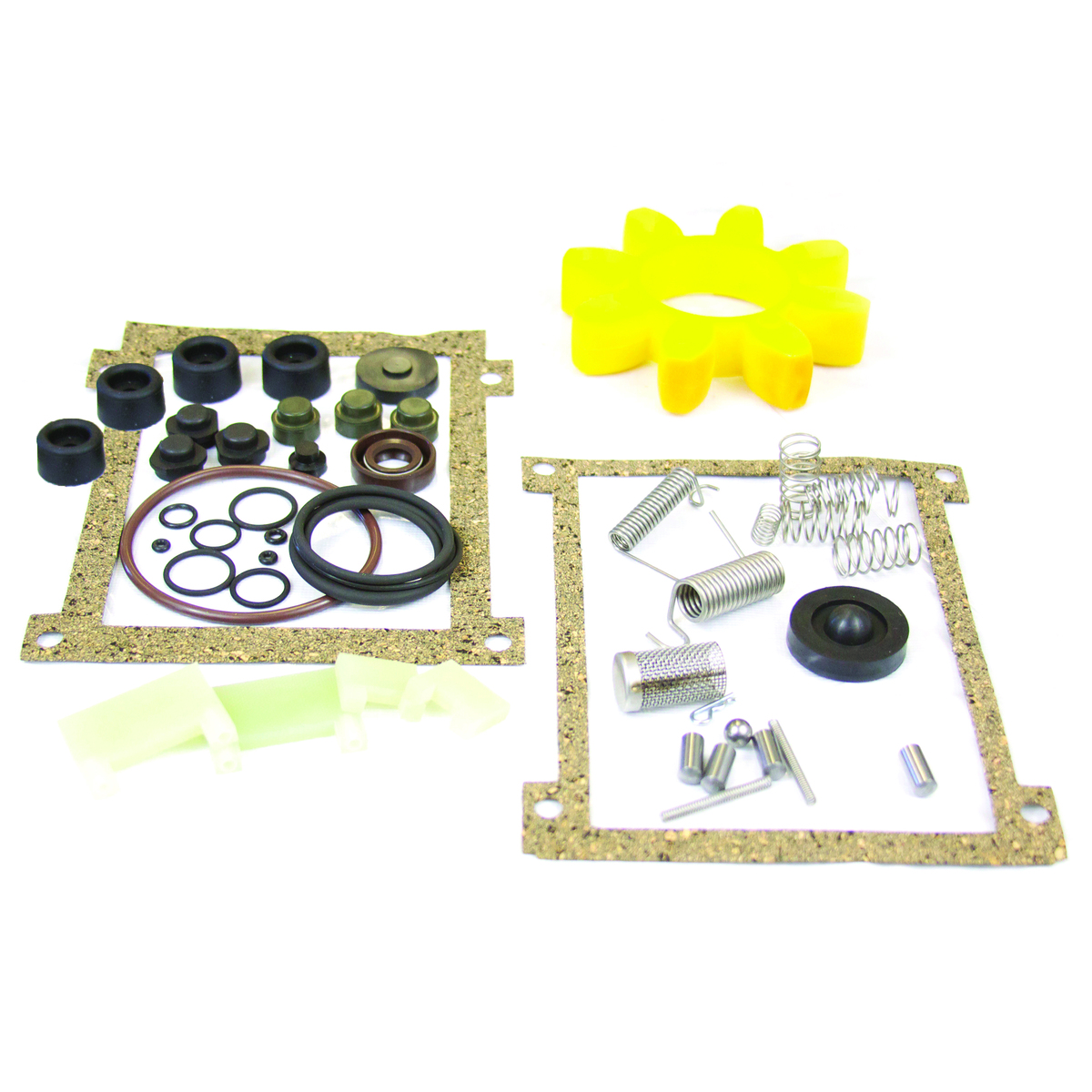

Major Repair Kit with GX Vanes - Varian/Agilent DS102
EUR 325.00
Used on:
Galileo: D05
Varian/Agilent: DS102
For exact kit content details see bill of materials below
Galileo: D05
Varian/Agilent: DS102
For exact kit content details see bill of materials below
Added to Your Shopping Cart
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 780030 | Filter Screen, Stainless Steel, Galileo, Varian-Agilent, Part# 780030 | 1 | 4 |
| 320269 | O-ring, 1mm x 3mm - Viton, Part# 320269 | 2 | 7 |
| 230056G | Vane, 2nd Stage - GX, Galileo, Varian - Agilent, D Series, DS Series, Part# 230056G | 2 | 11 |
| 230057G | Vane, 1st Stage - GX, Galileo, Varian - Agilent, Part# 230057G | 2 | 10 |
| 300053 | Gasket, Cork, Galileo, Varian-Agilent, Part# 300053 | 1 | 9 |
| 300054 | Gasket, Cork, Galileo, Varian-Agilent, Part# 300054 | 1 | 4 |
| 310055 | Shaft Seal, Galileo, Varian-Agilent, Part# 310055 | 1 | 9 |
| 320072 | O-ring, 41 x 1.78 mm - Viton, Part# 320072 | 1 | 9 |
| 320088 | O-ring, 15.6 x 1.78 mm - Viton, Part# 320088 | 2 | 62 |
| 320109 | O-ring, 33 x 2.5 mm - Viton, Part# 320109 | 1 | 23 |
| 320113 | O-ring, 38 x 3.5 mm, Part# 320113 | 1 | 8 |
| 320131 | O-ring, 1.78 x 1.78mm - Viton, Part# 320131 | 2 | 60 |
| 320132 | O-ring, 2.9 x 1.78mm - Viton, Part# 320132 | 2 | 44 |
| 320133 | O-ring, 7.65 x 1.7mm - Viton, Part# 320133 | 1 | 9 |
| 02124119 | O-ring, 12.42 x 1.78 mm - Viton, Part# 2124119 | 1 | 7 |
| 02122058 | O-ring, 61.6 x 3.5 mm - Viton, Part# 2122058 | 1 | 33 |
| 02122009V | O-ring, 11 x 1.5 mm - Viton, Part# 02122009V | 1 | 13 |
| 380016 | Exhaust Valve, Galileo, D Series, DS Series, Part# 380016 | 3 | 96 |
| 380017 | Valve, Buna, Galileo, Varian - Agilent, D Series, DS Series, D05, DS102, D08, D12, DS42, DS202, DS302, D18, D28, DS402, DS602, Part# 380017. | 1 | 25 |
| 390008 | Steel Ball, 9/32" dia., Galileo, Varian-Agilent, D Series, DS Series, Part# 390008 | 1 | 4 |
| 40009 | O-ring, 37.77 x 2.62 mm - Viton, Part# 40009 | 1 | 5 |
| 450033 | Dowel Pin, Centring, Galileo, Varian-Agilent, Part# 450033 | 4 | 27 |
| 450034 | Cotter Pin, Hairpin, Galileo, Varian-Agilent, D Series, DS Series, Part# 450034 | 1 | 7 |
| 490028 | Compression Spring, Galileo, Varian - Agilent, Part# 490028 | 1 | 32 |
| 490029 | Compression Spring, Galileo, Varian - Agilent, D Series, DS Series, D05, DS102, Part# 490029 | 1 | 4 |
| 490030 | Compression Spring, Galileo, Varian - Agilent, D Series, DS Series, Part# 490030 | 1 | 4 |
| 490031 | Spring, Torsion (Special Ends), Galileo, Varian - Agilent, D Series, DS Series, Part# 490031 | 1 | 5 |
| 490032 | Spring, Torsion (Special Ends) - Galileo, Varian - Agilent D Series, Part# 490032 | 1 | 5 |
| 490034 | Vane Spring, Galileo, Varian - Agilent, Part# 490034 | 2 | 22 |
| 500501190001S | Coupling Element, Galileo, Varian-Agilent, Part# 500501190001S | 1 | 6 |
| 52655 | Discharge Valve, Galileo, A Series, Chemical Series, Pascal, D Series, DS Series, Part# 52655 | 3 | 39 |
| 580039 | Anti - Suckback, Shutter - Viton, Galileo, Varian - Agilent, Part# 580039 | 1 | 7 |
| 580040 | Anti - Suckback Valve, Shutter, Galileo, Varian - Agilent, Part# 580040 | 1 | 22 |
| 619561A | Exhaust Valve Spring, Fisher Scientific, Galileo, Varian - Agilent, Welch, Part# 619561A | 3 | 82 |
| 640015 | Buffer Foot, Galileo, Varian - Agilent, Part# 640015 | 4 | 34 |
General product classifications
| Compatible Brands | Galileo,Varian-Agilent |
| Family |
D Series
DS Series |
| Compatible Pump Models |
D05
DS102 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | GALILEO-59,VARIAN-101 |
