Major Maintenance Kit, Kinney KT 500 D
Major Maintenance Kit, Kinney KT 500 D

Major Maintenance Kit, Kinney KT 500 D

80943200BM
EUR 1,481.00
Used on Kinney Rotary Piston KT500D

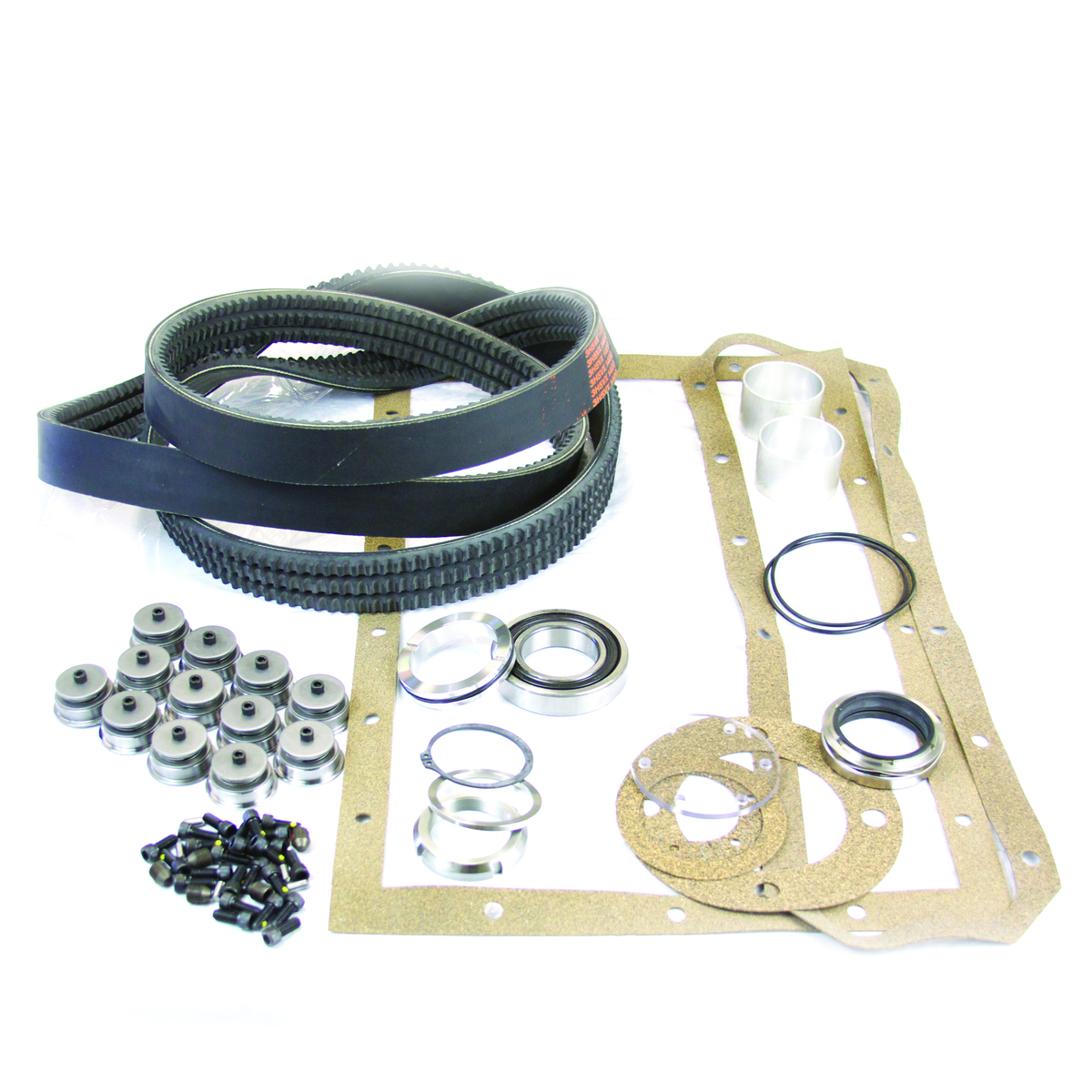

Major Maintenance Kit includes; discharge Valve, shaft seal, gaskets, O-rings, sight glass, bushings, bearings, and other components for a complete overhaul

0 In Stock

Click For Availability
You may also like...
VPL M68 Mineral Vacuum Pump Oil - 20 Liter
M68-020
VPL M68 Mineral Vacuum Pump Oil - 20 Liter
EUR 227.00
VPL S68 Synthetic Vacuum Pump Oil, 20 Liter
S68-020
VPL S68 Synthetic Vacuum Pump Oil, 20 Liter
EUR 325.00
Bill Of Material
Part Number Description Quantity Qty in stock
804192 Oil Sight Glass, Plexiglas, Kinney, Rotary Piston, Part# 804192 1 5
802505 Set Screw, Kinney, Rotary Piston, KT850C, KT500C, Part# 802505 5 17
802158 Ring SS, Backup, Kinney, Rotary Piston, Part# 802158 1 0
066161 Discharge Valve Assembly 8 35
065214 Shaft Seal - Head Assembly (2 1⁄8), Kinney, Rotary Piston, Part# 065214 1 3
065108 Shaft Seal Seat, Cast Iron (2 1⁄8), Kinney, Rotary Piston, KT500C, KT500D, Part# 065108 1 0
064008 Retaining ring, External, Kinney, Rotary Piston, KT500C, KT500D, Part# 64008 1 0
054105 Ball Bearing - 50 mm, Kinney, Rotary Piston, KT500C, KT500D, Part# 54105 1 0
054109 Kinney Sleeve Bearing - 2 1/8, Part# 054109 2 0
054099 Bearing Locknut, N-10, Kinney, KT500C/D, Part# 54099 1 0
052469 Cap Screw - Hex Head, Kinney, Rotary Piston, KT850C, KT500C, Part# 52469 24 89
051120 V-Belt 1 0
050245 O-ring, 110.72 x 3.53 mm - Buna, Part# 050245 2 14
050227 O-ring, 53.57 x 3.53 mm - Buna, Part# 050227 1 4
804193 Sight Glass Gasket, Kinney, Rotary Piston, KT850C, KT500C, Part# 804193 1 5
807416 Separator Cover Gasket, Kinney, Rotary Piston, KT500C, KT500D, Part# 807416 1 2
808474 Valve Deck Cover Gasket, Kinney, Rotary Piston, KT500C, KT500D, Part# 808474 1 0
807554 Gasket, Kinney, Rotary Piston, Part# 807554 1 0
807547 Bottom Plate Gasket, Kinney, Rotary Piston, KT500D, Part# 807547 1 0
802694 Center Wall Locking Pin, Kinney, Rotary Piston, Part# 802694 5 0
807415 Cylinder/Separator Gasket, Kinney, Rotary Piston, KT500D, Part# 807415 1 0
Specifications

General product classifications

Compatible Brands Kinney
Family Rotary Piston
Compatible Pump Models KT500D
Category Repair Kits
Subcategory Maintenance Kits
Country of origin US
Manual page KINNEY-62
Product Details

Major Maintenance Kit includes; discharge Valve, shaft seal, gaskets, O-rings, sight glass, bushings, bearings, and other components for a complete overhaul Used on Pump Models KT500D
