Leybold Major Repair Kit with GX Vanes Part# 19122D40KIT

Leybold Major Repair Kit with GX Vanes Part# 19122D40KIT

19122D40KIT
EUR 412.00
Used on Leybold Trivac D40B

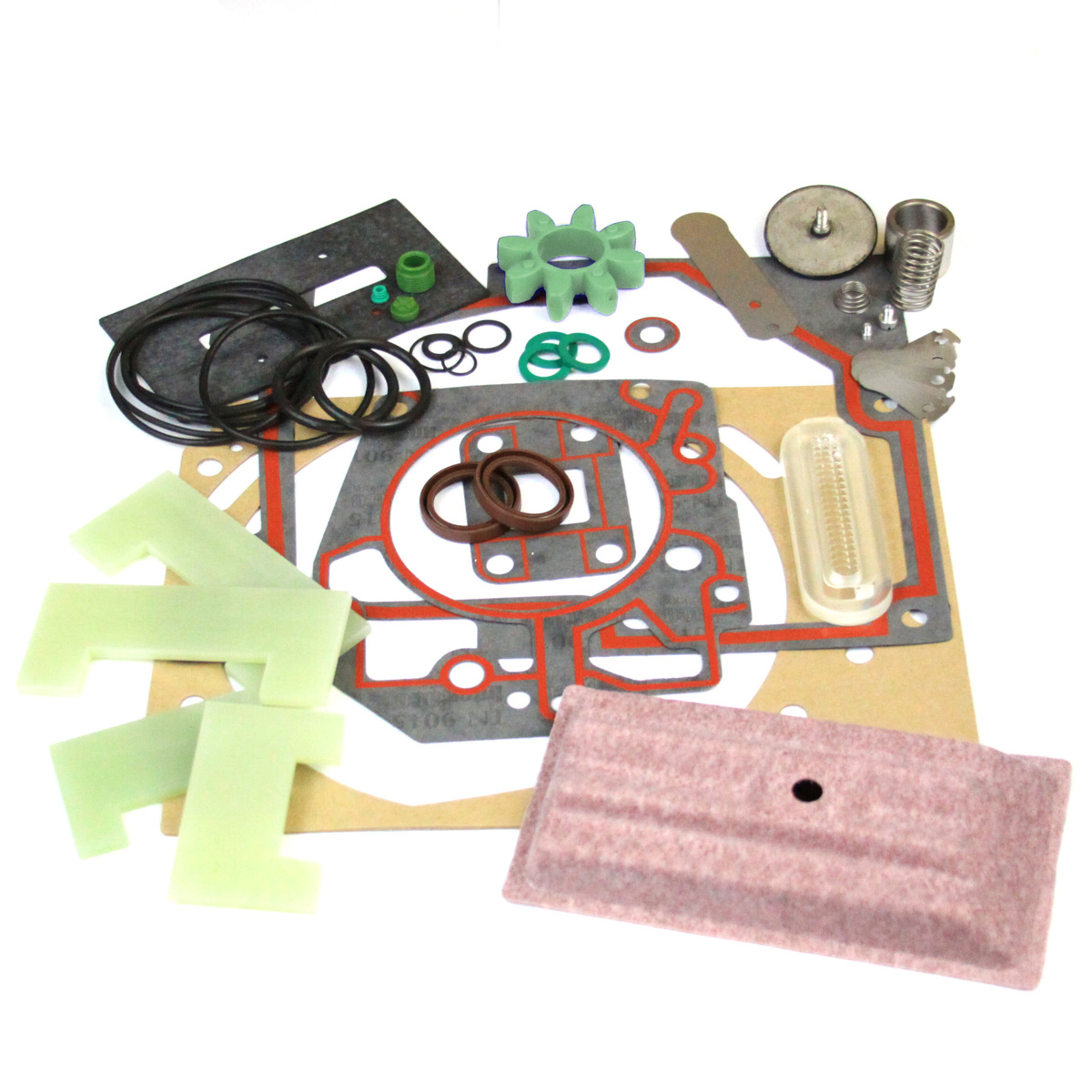

Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul

6 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
PL40050140 Valve Disc, Leybold, Trivac, Part# PL40050140 1 50
23973036 Coupling Housing Gasket, Leybold, Trivac, Part# 23973036 1 106
23973042 Cover Gasket, Leybold, Trivac, D40B, D65B, D40BCS, D65BCS, S40B, Part# 23973042 1 95
PL70120381 O-ring, FKM - Part# PL70120381 1 26
PL20010746 Beaded Valve Gasket, Leybold, Trivac, D40B, D65B, S40B, S65B, D40BCS, D65BCS, Part# PL20010746 1 43
PL20009095 Leybold Coupling Insert, Part# PL20009095 1 32
PL20010744 Leybold Trivac D40 / D65 Module Gasket, Mylar, Part# PL20010744 1 22
23973044 Gasket, Flat, Leybold, Trivac, Part# 23973044 1 176
PL23973146 Seal, Float, Leybold, Trivac, Part# PL23973146 1 112
PL34861028 Non - Return Valve, Leybold, Trivac, Part# PL34861028 1 121
PL34861029 Seal, Leybold, Trivac, Part# PL34861029 1 74
PL35001179 Leybold Sight Glass Part# PL35001179 1 146
PL39026014 Leybold Demister Filter, Part# PL39026014 1 39
PL39350007 Oil Nozzle, Leybold, Trivac, Part# PL39350007 1 108
PL39350019 Leybold Silencer Nozzle, Part# PL39350019 1 25
PL23970516 O-ring, 42 x 5 mm - Viton, Part# PL23970516 2 55
PL23970305 O-ring, 10 x 3 mm - Viton, Part# PL23970305 1 67
PL23970223 O-ring, FKM - Part# PL23970223 4 27
PL23970304 O-ring, 45 x 3 mm - Viton, Part# PL23970304 1 277
PL23970147 O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 1 231
PL23970016 O-ring, 22 x 1.5 mm - Viton, Part# PL23970016 1 154
PL23953007 Shaft Seal, Viton - 30 x 40 x 7, Leybold, Trivac, Part# PL23953007 2 45
PL23950121 O-ring, 68 x 3.5 mm - Buna, Part# PL23950121 1 86
PL23192034 Leybold Shaft Seal, Bushing Sleeve, Part# PL23192034 1 22
PL22161040 Stainless Steel Spring, Leybold, Trivac, Part# PL22161040 1 285
PL22161031 Split Spring, Leybold, Trivac, D4B, D8B, Part# PL22161031 1 191
PL20039131 Sight Glass Gasket, Leybold, Trivac, Part# PL20039131 1 71
PL20011245 Exhaust Finger, Part# PL20011245 4 238
20009148 Leybold Case Gasket, Part# 20009148 1 47
P23970108 O-ring, 12 x 1.5 mm - Viton, Part# P23970108 1 462
P23955165 Leybold Gasket, Viton, Part# P23955165 3 5874
PL40175023 Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 1 54
PL20010653 Vane, 2nd Stage - GX, Leybold, Trivac, D40B, D40BCS, Part# PL20010653 2 21
PL20010652 Leybold Vane, 1st & 2nd Stage - GX, Part# PL20010652 2 17
Specifications

General product classifications

Compatible Brands Leybold
Family Trivac
Compatible Pump Models D40B
Category Repair Kit
Subcategory Major Repair / Overhaul Kit
Country of origin US
Manual page LEYBOLD-67
Product Details

The Leybold Major Repair Kit with GX Vanes (Part# 19122D40KIT) is a comprehensive kit specifically designed for conducting a major repair or overhaul on Leybold TRIVAC Pump Model D40B. This kit includes essential components such as a coupling element, O-rings, shaft seal, Vanes, Valves, and other necessary parts required to restore the pump to optimal working condition. By utilizing this kit, users can conveniently replace worn or damaged components, ensuring the pump's efficient and reliable performance. The Leybold Major Repair Kit with GX Vanes (Part# 19122D40KIT) provides a convenient solution for comprehensive maintenance and repair of the Leybold D40B pump model.
