Major Rebuild Kit with Vanes, Rietschle VCA25 / VCE25
Major Rebuild Kit with Vanes, Rietschle VCA25 / VCE25

Major Rebuild Kit with Vanes, Rietschle VCA25 / VCE25

3142
EUR 917.00
Used on Rietschle VCA25 and VCE25 Oil Sealed Rotary Vane Vacuum Pumps

For complete kit content details see bill of materials below

0 In Stock

Click For Availability
You may also like...
VPL S100 Synthetic Vacuum Pump Oil, 1 Liter
S100-001
VPL S100 Synthetic Vacuum Pump Oil, 1 Liter
EUR 19.50
VPL M100 Mineral Vacuum Pump Oil, 1 Liter
M100-001
VPL M100 Mineral Vacuum Pump Oil, 1 Liter
EUR 14.40
Bill Of Material
Part Number Description Quantity Qty in stock
520615 Gasket Kit, Paper-Rietschle V-VCA-VCE, Part# 520615 1 2
604605 Shaft Seal, Viton - 20 x 40 x 7 mm, Rietschle, V-VCA-VCE, Part# 604605 2 14
622300 Nilos ring, Steel, 2.04" OD x 1.18" ID x 0.012"Th, Rietschle, V-VCA-VCE, Part# 622300 1 7
316709 Mesh Gasket, Rietschle, V-VCA-VCE, 1 0
312870 Rectangular Gasket, Rietschle, V-VCA-VCE, VCA25, VCE25, Part# 312870 1 0
725015 Sight Glass Assembly- Rietschle V-VCA-VCE, Part# 725015 2 0
622051 ring, Retaining, External, 35.2IDx1.75mm, Rietschle, V-VCA-VCE, Part# 622051 1 7
622007 Retaining Ring External, 16.5 ID x 1.2 0 mm, Rietschle, Part# 622007 1 2
622003 Retaining ring, External, 9.3 ID x 1.00 mm, Rietschle, Part# 622003 4 49
620007 Flat Washer, Zinc, Rietschle, V-VCA-VCE, V-VC, Part# 620007 4 70
618005 Lock Nut, Hex, Nylon, Rietschle, V-VCA-VCE, V-VC, Part# 618005 4 70
602059 Ball Bearing, Single Row / Deep Groove, 6304, Rietschle, V-VCA-VCE, Part# 602059 2 3
313658 Exhaust Filter, Rietschle, V-VCA-VCE, VCA25, VCE25, Part# 313658 1 1
510756 Distance ring, Rietschle, Part# 510756 4 69
522265 Vane Aluminium Alloy, Rietschle, V - VCA - VCE, VCA25, VCE25, Part# 522265 3 0
704019 Ring Gasket, Copper, Rietschle, V-VCA-VCE, Part# 704019 1 14
704020 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 9 1
704021 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 1 1
704043 Ring Gasket, Buna, Rietschle, V-VCA-VCE, Part# 704043 1 0
520913 Coupling, Buna - RietschleV-VCA-VCE, V-VC, Part# 520913 4 17
515839 Inlet Screen, Stainless Steel, Rietschle V-VCA-VCE, V-VC, Part# 515839 1 9
704563 Ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704563 1 4
520571 Rectangular Gasket-Rietschle V-VCA-VCE, Part# 520571 1 6
512895 Rectangular Gasket, Rietschle, V-VCA-VCE, Part# 512895 1 0
320228 O-ring, 7.65 x 3 mm - Buna, Part# 320228 1 12
320229 O-ring, 29.87 x 1.5 mm - Buna, Part# 320229 1 3
420044 Ring Gasket, Copper, Rietschle, V-VCA-VCE, Part# 420044 1 14
510581 Ring Gasket, Rietschle, Part# 510581 6 27
502564 Round Gasket, Rietschle, V-VCA-VCE, Part# 502564 1 9
520611 Rectangular Gasket, Rietschle, V-VCA-VCE, Part# 520611 1 0
Specifications

General product classifications

Compatible Brands Rietschle
Family V-VCA-VCE
Compatible Pump Models VCA25
VCE25
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page RIETSCHLE-85
Product Details

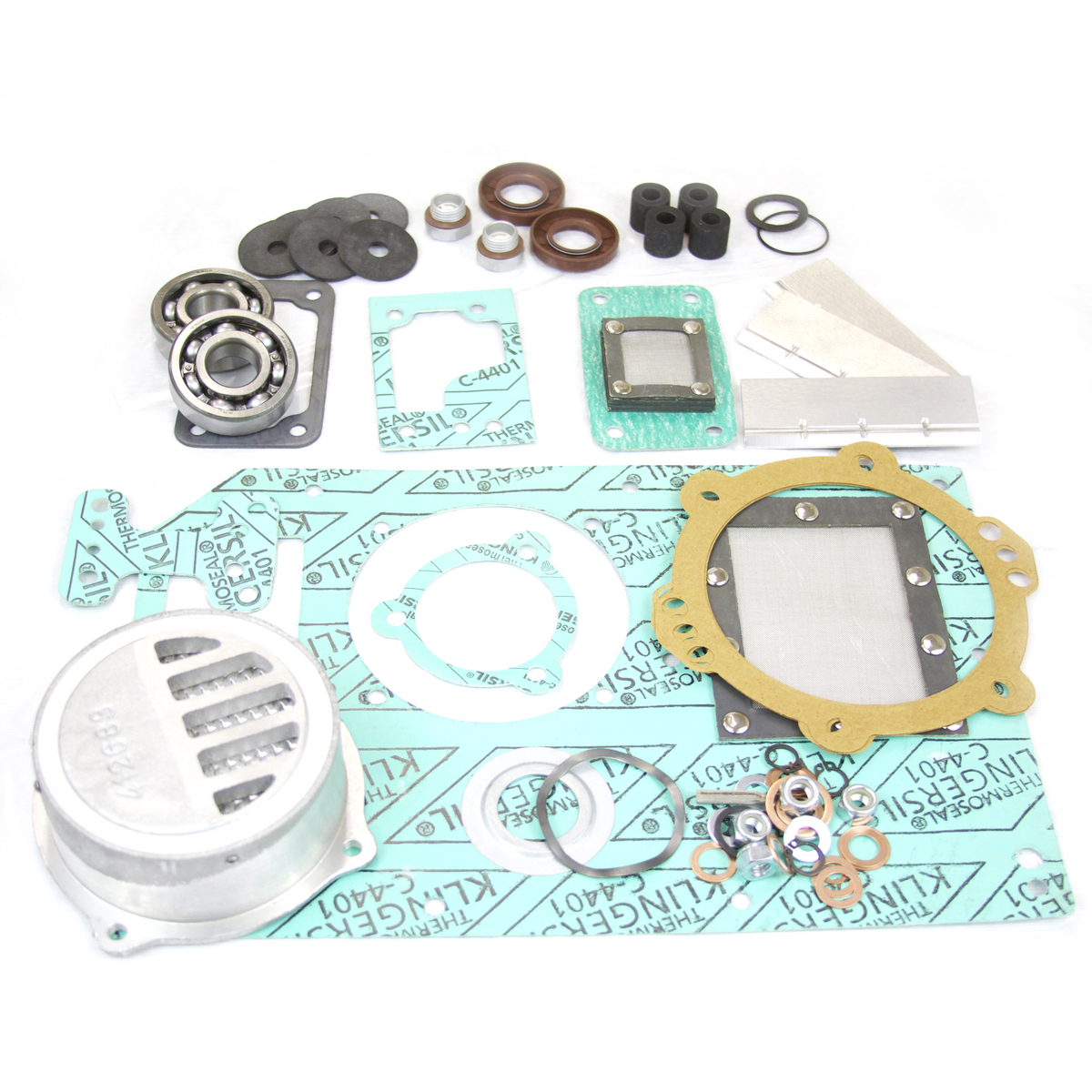

Major Rebuild Kit with Vanes includes; exhaust filters & access panel O-rings & gaskets, O-rings, Vanes, bearings, couplings, sight glass & other components for major overhaul. Used on Pump Models VCA25, VCE25
