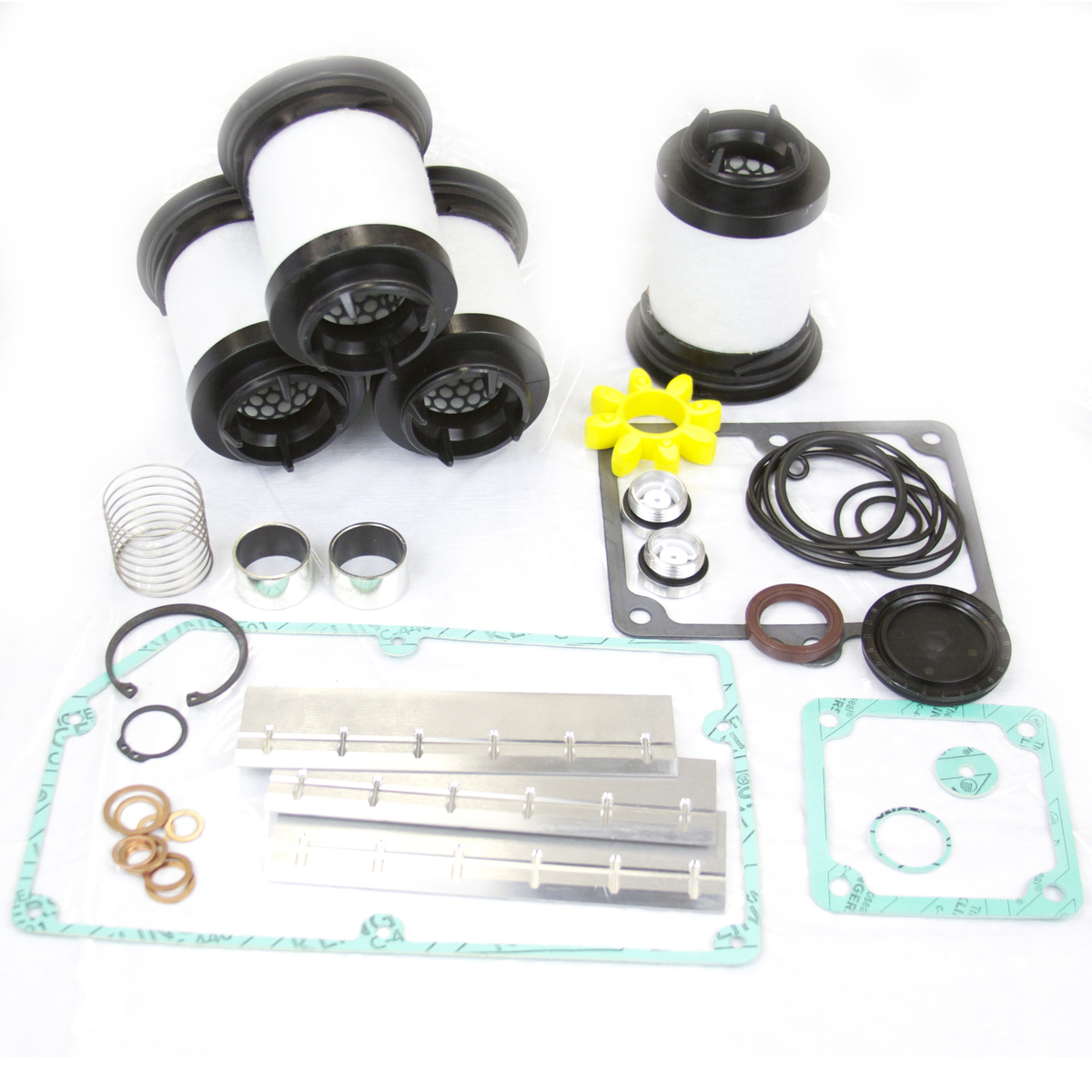

Major Repair Kit with Vanes - Rietschle VC 300
Major Repair Kit with Vanes - Rietschle VC 300

Major Repair Kit with Vanes - Rietschle VC 300

3227
EUR 1,886.00
Used on Rietschle V-VC VC300

For complete kit content details see bill of materials below

0 In Stock

Click For Availability
You may also like...
VPL S100 Synthetic Vacuum Pump Oil, 20 Liter
S100-020
VPL S100 Synthetic Vacuum Pump Oil, 20 Liter
EUR 292.00
VPL M100 Mineral Vacuum Pump Oil, 20 Liter
M100-020
VPL M100 Mineral Vacuum Pump Oil, 20 Liter
EUR 201.00
Bill Of Material
Part Number Description Quantity Qty in stock
520913 Coupling, Buna - RietschleV-VCA-VCE, V-VC, Part# 520913 8 17
510756 Distance ring, Rietschle, Part# 510756 8 69
512551 Oil Level Plate-Rietschle V-VCA-VCE, V-VC, Part# 512551 1 8
602020 Ball Bearing, Single Row / Deep Groove, 6307, Rietschle, V-VC, Part# 602020 2 14
521639 Vane - Aluminium Alloy, Rietschle, V - VC, VC300, Part# 521639 3 5
618005 Lock Nut, Hex, Nylon, Rietschle, V-VCA-VCE, V-VC, Part# 618005 8 70
620007 Flat Washer, Zinc, Rietschle, V-VCA-VCE, V-VC, Part# 620007 8 70
622003 Retaining ring, External, 9.3 ID x 1.00 mm, Rietschle, Part# 622003 8 49
622019 Retaining ring, External, 27.9 ID x 1.50 mm, Rietschle, V-VC, Part# 622019 2 13
622053 Washer, Spring, Wave, Spring St, Rietschle, V-VC, Part# 622053 1 7
622721 Washer, Nylon, fits 1/4 screw, Rietschle, V-VC, Part# 622721 4 12
706467 Ring Sealing, Cover, Rietschle, V-VC, Part# 706467 1 6
725013 Sight Glass Assembly, Rietschle, V-VCA-VCE, V-VC, Part# 725013 2 36
730503 Intake Filter, Rietschle, V-VC, Part# 730503 1 51
731401 Rietschle Exhaust filter for V VC pump, Part# 731401 7 237
300119 Gasket Kit, Paper, Rietschle, V-VC, VC200, VC300, Part# 300119 1 5
313504 Oil Box Gasket, with Mesh, Rietschle, V-VC, Part# 313504 1 3
317021 Inlet Filter Mesh, Part# 317021 1 8
320230 O-ring, 39.35 x 2 mm - Buna, Part# 320230 1 5
507973 Round Gasket-Rietschle V-VC, Part# 507973 2 15
510581 Ring Gasket, Rietschle, Part# 510581 14 27
513498 Rectangular Gasket, Rietschle, V-VC, VC300, Part# 513498 1 8
521409 Gasket, H-shaped-Rietschle V-VC, Part# 521409 1 7
521410 Inlet Filter Gasket, Mesh- Rietschle V-VC, Part# 521410 1 6
521420 Trapezoid Gasket-Rietschle V-VC, Part# 521420 1 7
521421 Rectangular Gasket- Rietschle V-VC, Part# 521421 1 7
604511 Shaft Seal, 32 x 52 x 7 mm, Rietschle, V-VC, VC200, VC300, Part# 604511 4 31
622552 Nilos Ring Steel, 3.15" OD x 1.88" ID x 0.012"Th, Rietschle, V-VC, Part# 622552 2 18
704017 ring Gasket, Copper-Rietschle V-VC, V-VCA-VCE, Part# 704017 9 49
704020 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 5 1
704021 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 1 1
704024 ring Gasket, Rietschle, V-VC, Part# 704024 1 8
704039 ring Gasket, Rietschle, V-VC, Part# 704039 1 3
706471 Ring Sealing, Cover, 290 x 4 mm, Rietschle, V-VC, Part# 706471 1 0
02125117 O-ring, 12.37 x 2.62 mm - Buna, Part# 2125117 1 4
515839 Inlet Screen, Stainless Steel, Rietschle V-VCA-VCE, V-VC, Part# 515839 1 9
Specifications

General product classifications

Part Number Cross-Reference 23R-VC300-V
Compatible Brands Rietschle
Family V-VC
Compatible Pump Models VC300
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page RIETSCHLE-86
